Steam Shrink Tunnels

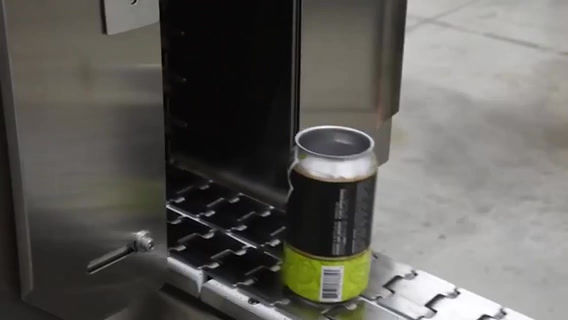

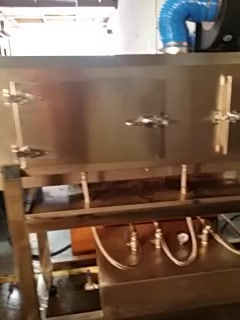

The PP-1200M, PP-1500M, and PP-2000M Series of Stainless Steel Steam Shrink Tunnels are easy to operate, easy to maintain and easy to clean. They are designed to efficiently shrink full body shrink bands on almost any container type and almost any shrink film material. The low pressure steam drum distributes steam evenly with a with an integrated steel tube design. There are steam jet tubes in each section of the tunnel which are adjustable for both height and steam output. The shell of the tunnel is constructed of #304 Stainless Steel and there is also a stainless steel water collecting plate to collect the condensated water. The machine’s stainless steel, water-proof design makes it easy to clean and maintain.
SPECIFICATIONS
BROCHURE
Model # |
PP-1200M |
PP-1500M |
PP-2000M |
Tunnel Length |
48” (1220mm) |
60” (1524mm) |
80” (2032mm) |
Steam Tubes |
6 Tubes - 2 sections |
6 Tubes - 3 sections |
6 Tubes - 3 sections |
Max Tunnel Height |
13.7” (348mm) |
13.7” (348mm) |
13.7” (348mm) |
Max Tunnel Width |
5.75” (146mm) |
5.75” (146mm) |
5.75” (146mm) |
Power |
220V 3 Phase |
220V 3 Phase |
220V 3 Phase |
Steam Consumption |
40lbs(18kg/hr) |
46lbs (21kg/hr) |
53lbs (24kg/hr) |
